325VST TRACKED CARRIER
CUMMINS 6.7L TIER 4 FINAL, STAGE V ENGINE
FECON POWER MANAGEMENT SYSTEM
FACTORY SERVICE REMOTE CONNECTIVITY STANDARD
LARGE 7” TOUCHSCREEN DISPLAY
OSCILLATING UNDERCARRIAGE & 30” TRACK SHOES
FECON STANDARD WARRANTY 12 MONTHS / 1,000 HRS
325VST Features
FECON STANDS ABOVE THE REST

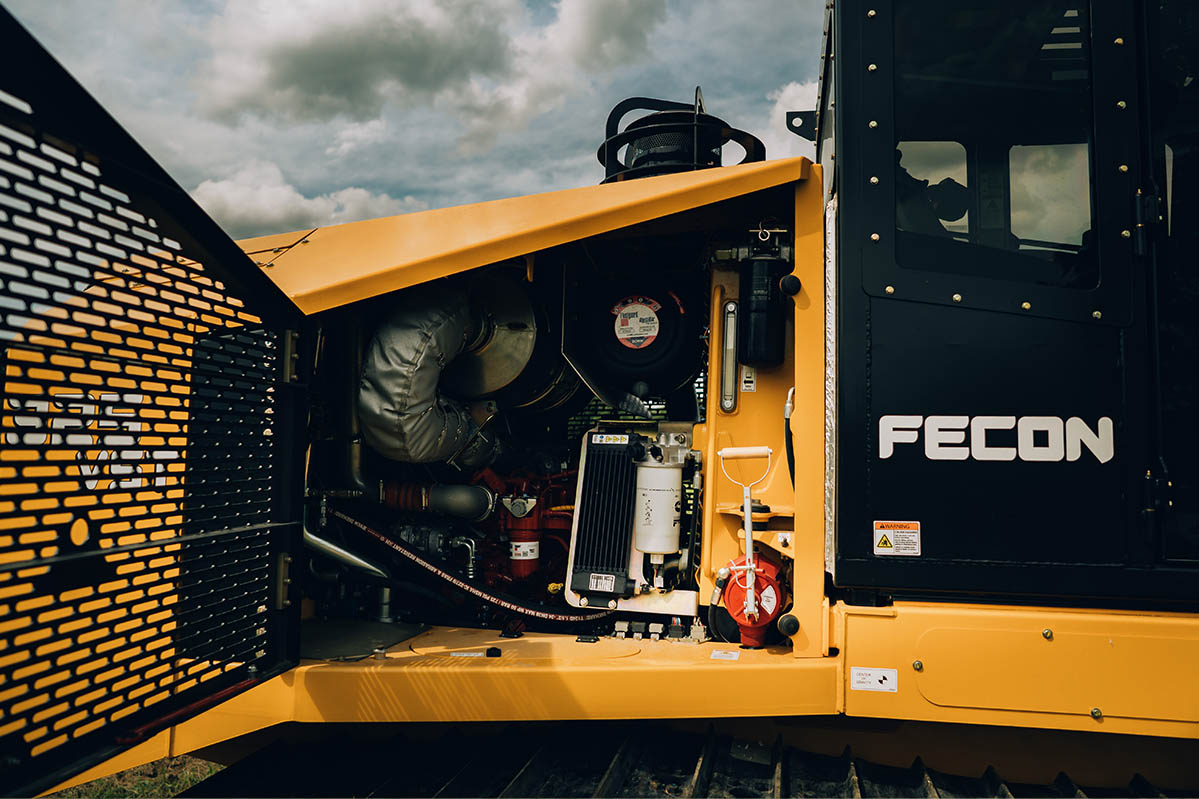

325VST SERVICEABILITY

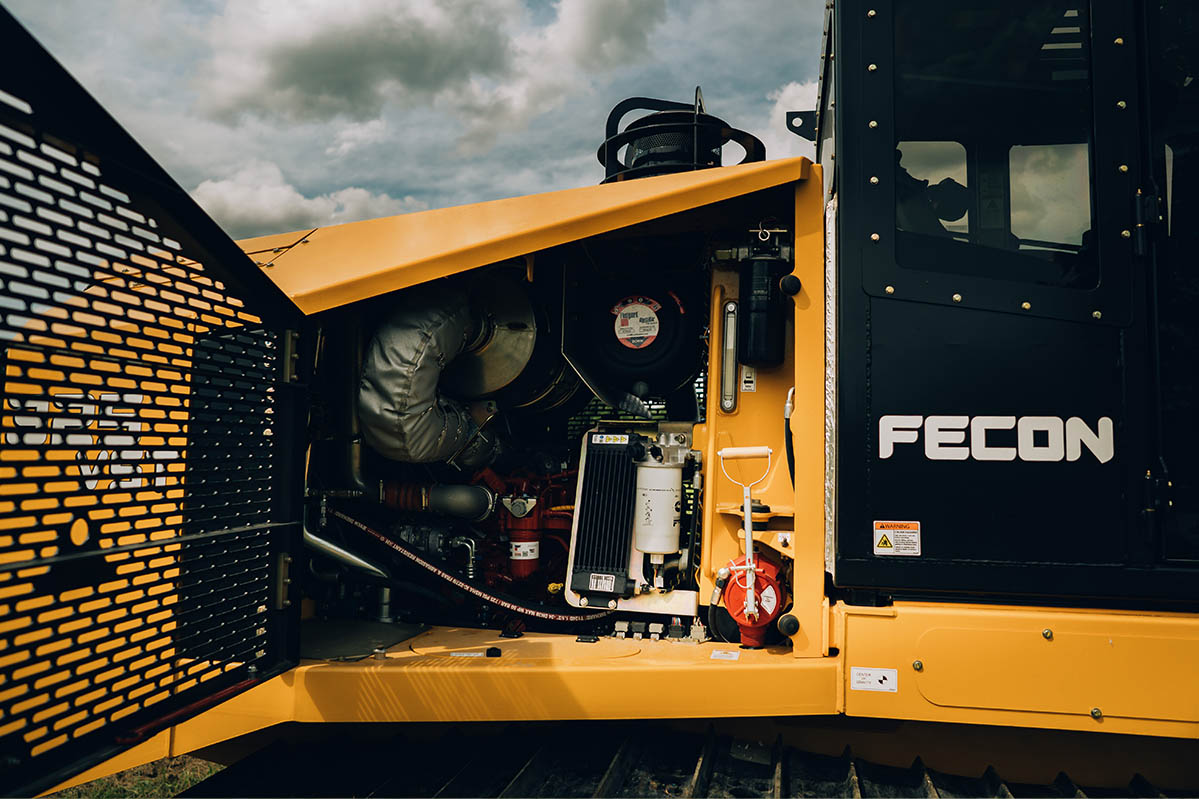

- Large engine bay doors and open engine bay allows for access to all components without interference and provides easy access to all points of the 325VST
- All filters and service points on the 325VST can be reached from the ground, making servicing the machine simple and easy to do in the field
COOLING CAPACITY
- Oversized cooling capabilities allow the 325VST to work at full power in the harshest applications
- The 325VST cooling system keeps entire machine in optimal temperature range, prolonging life of both engine and hydraulic components
- Automatic Hydraulic Reversing Fans for both coolers keep the radiators clean and running at peak efficiency, even in dusty and debris-filled applications
- Reversing fan timers are adjustable to allow operators to optimize the 325VST to the exact application they are running in

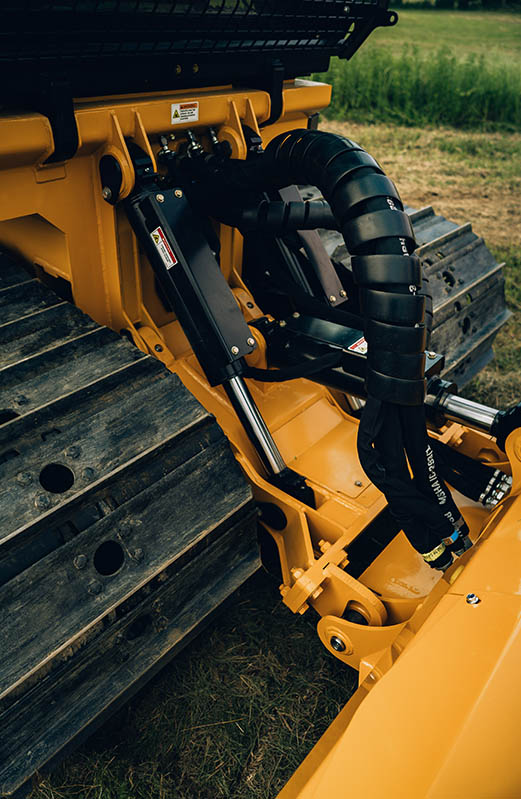

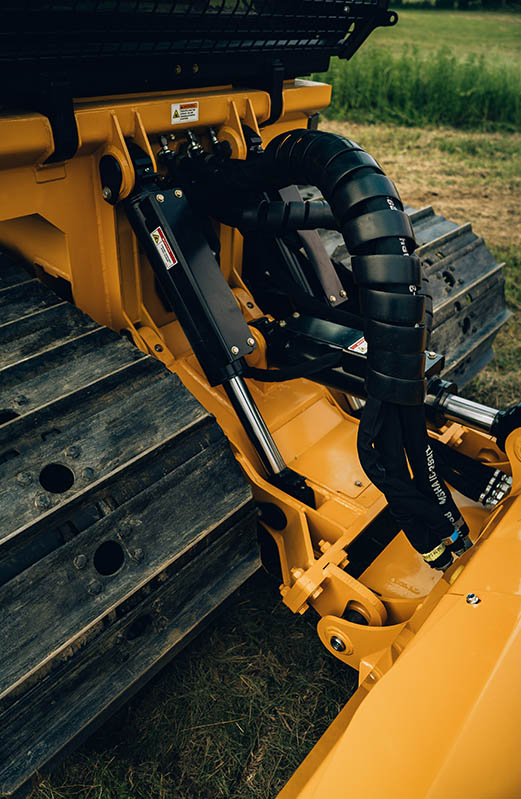

RANGE OF MOTION
- Increased productivity from the increased lift and range of motion of the 325VST
- Reach of 55” to tackle standing vegetation and trim tree lines
- Below grade of 32” to optimize ditch work
- Range of motion of the 325VST gives the operator more finite control over the mulching head, leading to an increase in productivity
FECON POWER MANAGEMENT®
- The 325VST is equipped with Fecon Power Management System to optimize machine performance – constantly monitoring the hydraulic circuits allowing for engine horsepower to be routed to where it is needed most
- The system allows for the 325VST to mulch up hill while maintaining control over both the lift arms and track system
- Fecon Power Management on the 325VST optimize both the recovery and staying power of the mulching head.
- The combination of the 325VST and the VM8620 results in a recovery time of less than 8 seconds
325VST ENGINE/POWER
- Tier 4 Final, Stage V engine provides more power with less fuel consumption than Tier 4 engines
- The 6.7L Cummins provides consistent power to the machine to maintain carrier performance in all situations
Product Specs
DIMENSIONS
ENGINE
UNDERCARRIAGE
PERFORMANCE
ATTACHMENTS
325VST - Attachments
STANDARD & OPTIONAL EQUIPMENT
Literature
325VST - Product Literature
PDF Download
325VST
Frequently Asked Questions
A Cummins QSB6.7, a 6.7 litre six cylinder rated at 310 HP with Tier 4 Final and Stage V aftertreatment. It produces 950 ft lbs of torque at 1,500 RPM, burns roughly 7 to 9 gallons per hour and uses around 0.4 to 0.5 gph of DEF.
With the Bull Hog fitted, ground pressure is 4.1 psi measured to SAE J1309. The oscillating carriage and 30 inch track shoes are what keep it low, giving balanced traction whether the ground is hard packed or soft and wet.

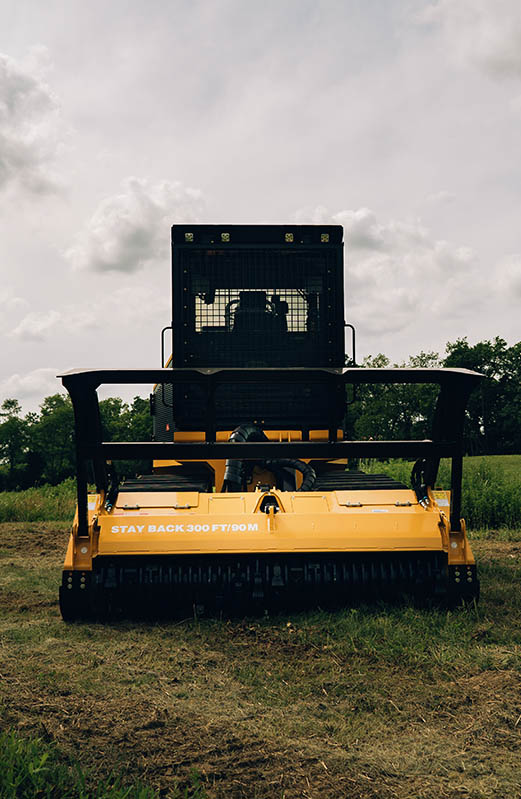

Maximum reach with the Bull Hog is 55 inches and maximum below grade is 32 inches. That range of motion lets an operator tackle standing vegetation and trim tree lines, then drop into ditch work without repositioning the machine.
It is a control system that constantly monitors the hydraulic circuits and routes engine horsepower wherever it is needed most. It allows the 325VST to mulch uphill while keeping control of both the lift arms and the track system, and paired with the VM8620 head it delivers a recovery time of under 8 seconds.
The machine weighs 26,980 lbs on its own and 32,092 lbs with the Bull Hog. Overall height is 125 inches, width is 94 inches or 101 inches with the Bull Hog, and length is 185 inches or 232 inches with the head fitted. Travel speed is 4.5 mph.
Yes. All filters and service points can be reached from the ground, and large engine bay doors on the side and rear give clear access to components without interference. Automatic hydraulic reversing fans on both coolers keep the radiators clean in dusty and debris filled work.

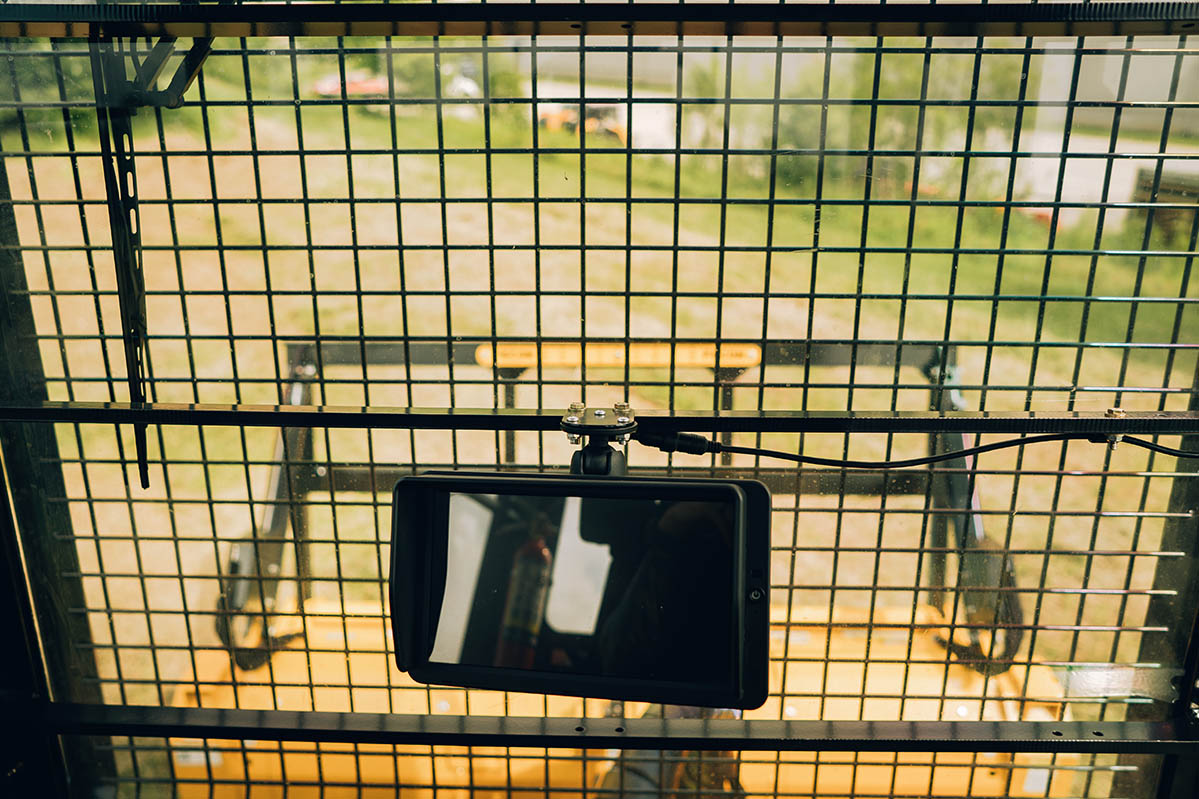

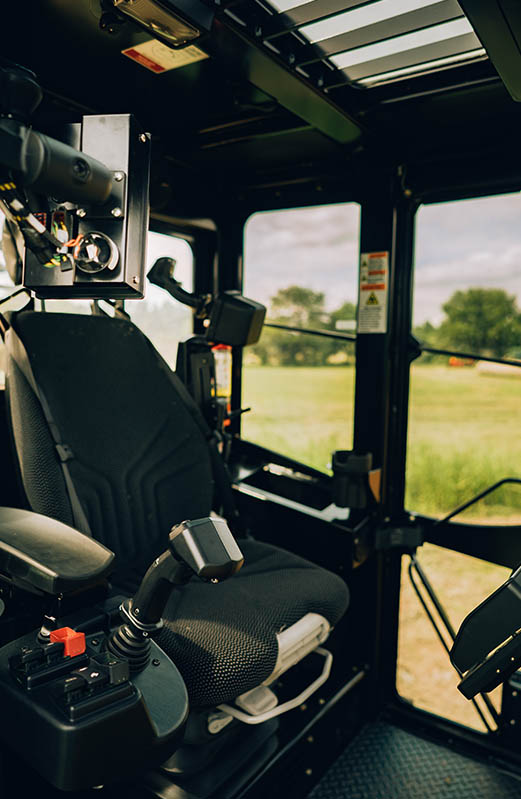

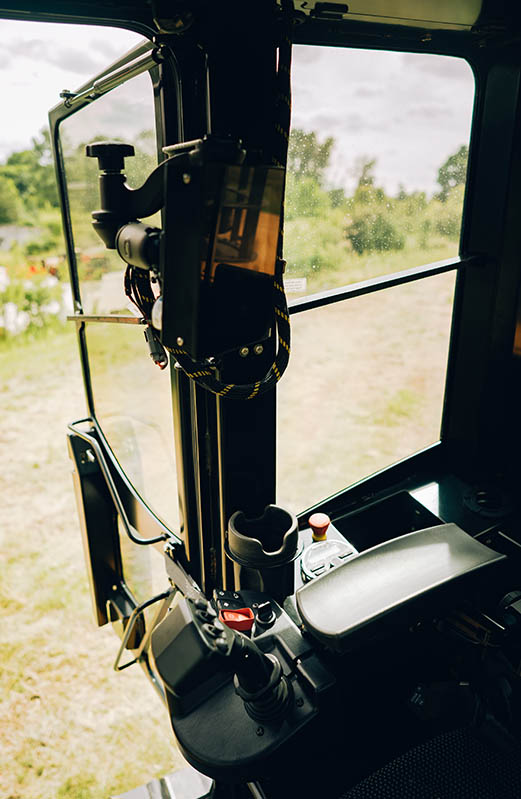

A pressurised cab with high capacity climate control, heated air suspension seat, 7 inch touchscreen, keyless start with PIN protection, a 15,000 lb winch, rearview camera, three points of egress and phone app connectivity. Options include a fire suppression system, severe duty forestry skids, positive air shut off and CE certification.
115 gpm at 5,400 psi, drawn from a 49 gallon hydraulic tank. Fuel capacity is 100 gallons and DEF capacity is 15 gallons. The undercarriage is a Berco D4 class with 30 inch tracks, 2 top and 9 bottom rollers, and 23 inches of ground clearance.
