Cummins 6.7L Tier 4 Final, Stage V Engine
Fecon Power Management system
Factory Service Remote Connectivity Standard
Large 7” Touchscreen Display
Oscillating Undercarriage & 30” Track Shoes
Fecon Standard Warranty 12 Months / 1,000 hrs
FTX300 Features
Fecon stands above the rest
FTX300 Serviceability
- Large engine bay doors and open engine bay allows for access to all components without interference and provides easy access to all points of the FTX300
- All filters and service points on the FTX300 can be reached from the ground, making servicing the machine simple and easy to do in the field
Cooling Capacity
- Oversized cooling capabilities allow the FTX300 to work at full power in the harshest applications
- The FTX300 cooling system keeps entire machine in optimal temperature range, prolonging life of both engine and hydraulic components
- Automatic Hydraulic Reversing Fans for both coolers keep the radiators clean and running at peak efficiency, even in dusty and debris-filled applications
- Reversing fan timers are adjustable to allow operators to optimize the FTX300 to the exact application they are running in
Range of Motion
- Increased productivity from the increased lift and range of motion of the FTX300
- Reach of 55” to tackle standing vegetation and trim tree lines
- Below grade of 32” to optimize ditch work
- Range of motion of the FTX300 gives the operator more finite control over the mulching head, leading to an increase in productivity
FECON POWER MANAGEMENT®
- The FTX300 is equipped with Fecon Power Management System to optimize machine performance – constantly monitoring the hydraulic circuits allowing for engine horsepower to be routed to where it is needed most
- The system allows for the FTX300 to mulch up hill while maintaining control over both the lift arms and track system
- Fecon Power Management on the FTX300 optimize both the recovery and staying power of the mulching head.
- The combination of the FTX300 and the RK8620 results in a recovery time of less than 8 seconds
FTX300 Engine/Power
- Tier 4 Final, Stage V engine provides more power with less fuel consumption than Tier 4 engines
- The 6.7L Cummins provides consistent power to the machine to maintain carrier performance in all situations
- This is Fecon Fusion - the same intelligent control technology across the FTX line.
Product Specs
DIMENSIONS
FTX300 - Dimensions
ENGINE
FTX300 - Engine
ENGINE - TIER 3 (EXPORT ONLY)
FTX300 - Engine Tier 3
UNDERCARRIAGE
FTX300 - Undercarriage
PERFORMANCE
FTX300 - Performance
ATTACHMENTS
FTX300 - Attachments
STANDARD & OPTIONAL EQUIPMENT
FTX300 - Standard & Optional Equipment
Literature
FTX300 - Product Literature
PDF Download
EXPORT ONLY - FTX300 TIER 3 - PRODUCT LITERATURE
PDF Download
FTX300
Frequently Asked Questions

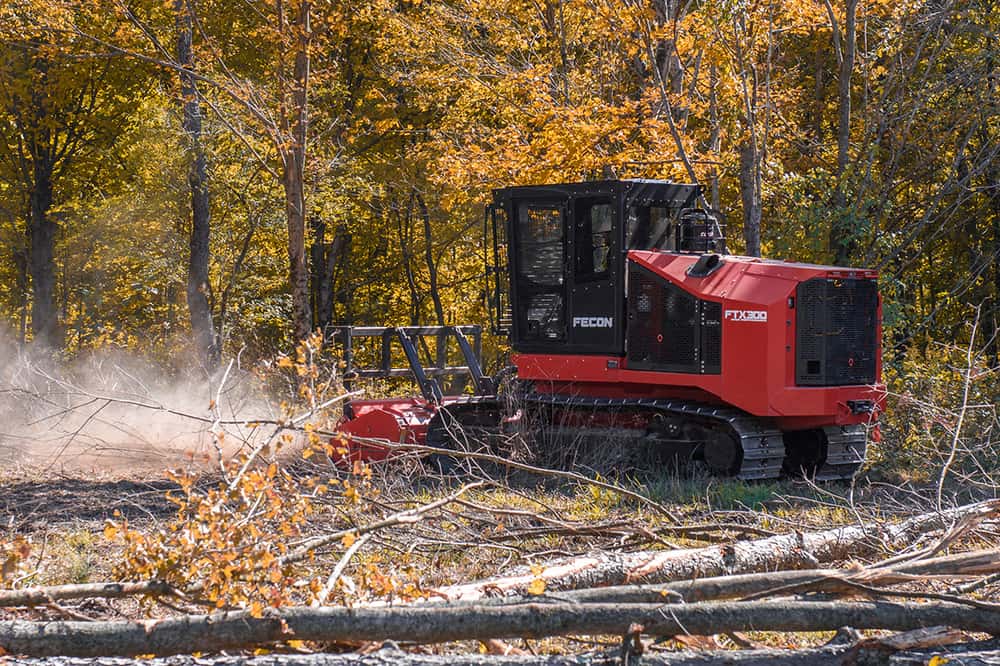

The FTX300 is a purpose built mulching tractor in the 300 HP class, designed for heavy land clearing. It uses a low ground pressure oscillating carriage with 30 inch track shoes for balanced traction in hard or soft conditions, and carries either the RK8620 pin on Bull Hog or the SH300 stump grinder.
A Cummins QSB6.7, a 6.7 litre six cylinder, Tier 4 Final and Stage V, rated at 310 HP with 950 ft lbs of torque at 1,500 RPM. An export only Tier 3 version is also offered at 270 HP with 730 ft lbs of torque.
26,980 lbs on its own and 32,092 lbs with the Bull Hog fitted, giving 4.1 psi ground pressure to SAE J1309. Overall height is 125 inches, width is 94 inches or 101 inches with the head, and length is 185 inches or 232 inches with the head. Travel speed is 4.5 mph.
The mulcher circuit is rated at 115 gpm at 5,400 psi with a 49 gallon hydraulic tank. Fuel capacity is 100 gallons and DEF capacity is 15 gallons, with consumption around 7 to 9 gph of fuel and 0.4 to 0.5 gph of DEF.
It monitors the hydraulic circuits continuously and routes engine horsepower where it is needed most, so the machine can mulch uphill while keeping control of both the lift arms and the track system. Paired with the RK8620 head, recovery time is under 8 seconds.
Maximum reach with the Bull Hog is 55 inches and maximum below grade is 32 inches, using a radial lift gear arrangement. That range gives the operator finer control over the head, which translates directly into more production per hour.
Yes. All filters and service points are reachable from the ground, and the open engine bay with large lockable doors gives clear access to components. Automatic hydraulic reversing fans with adjustable timers keep both coolers clean in dusty and debris filled applications.
