CUMMINS 3.8L TIER 4 FINAL ENGINE
DELUXE INSTRUMENT PANEL
HYDRAULIC QUICK ATTACH
SPACIOUS PRESSURIZED CAB & SUSPENSION SEAT
INDEPENDENT TORSION AXEL SUSPENSION
FECON STANDARD WARRANTY 12 MONTHS / 1,000 HRS
135VRT Features
Fecon stands above the rest
THE MOST POWERFUL CTL ON THE MARKET
- 132hp 3.8L Cummins Tier 4 Final Engine, a 10% increase over the Fecon 125VRT
- 50GPM auxiliary attachment flow providing 119hp to the Bull Hog Mulcher or other attachments

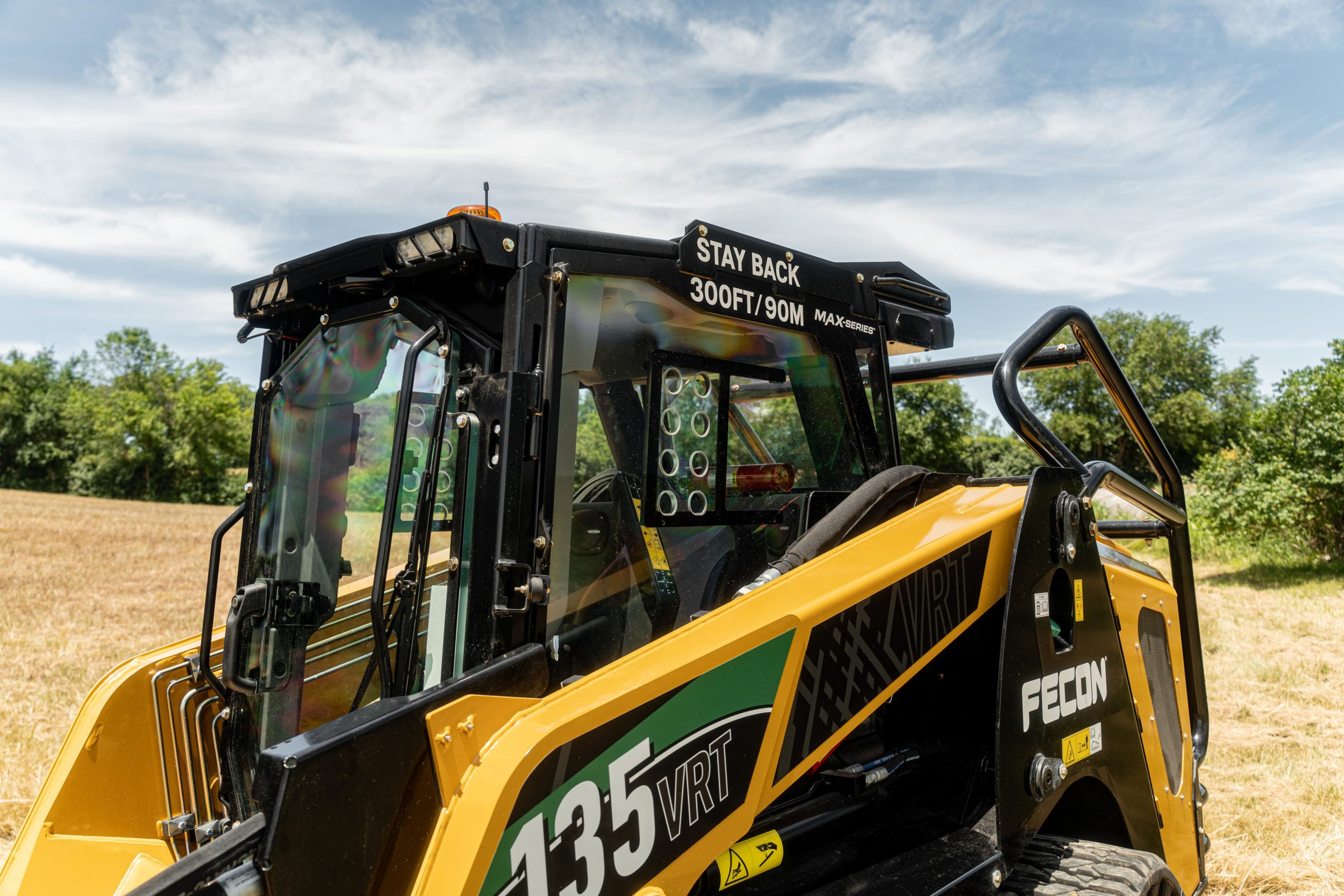

MAX SERIES CAB
- Full forestry spec cab, 3⁄4” poly front door, 1⁄2” poly side windows.
- More spacious, comfortable operator station with 8” color display
- Great visibility with all clear windows and doors and improved loader arm with no cross bars allowing for more visibility to the attachment
LARGER FUEL CAPACITY
- 52-gallon fuel tank for nearly double run time between fill-ups
- Full coverage fuel tank guarding with improved sealing to prevent debris ingestion
A TRUE WOODS WORTHY CTL
- All steel hoods for greater in woods durability with material shedding design
- Standard cage guard and limb risers for greater in woods protection
IMPROVED DURABILITY & SERVICEABILITY
- Hinged belly pans and tilting cooler and condenser guards for easy cleaning of the machine.
- Sealed fuse panels and improved wiring harness routing.

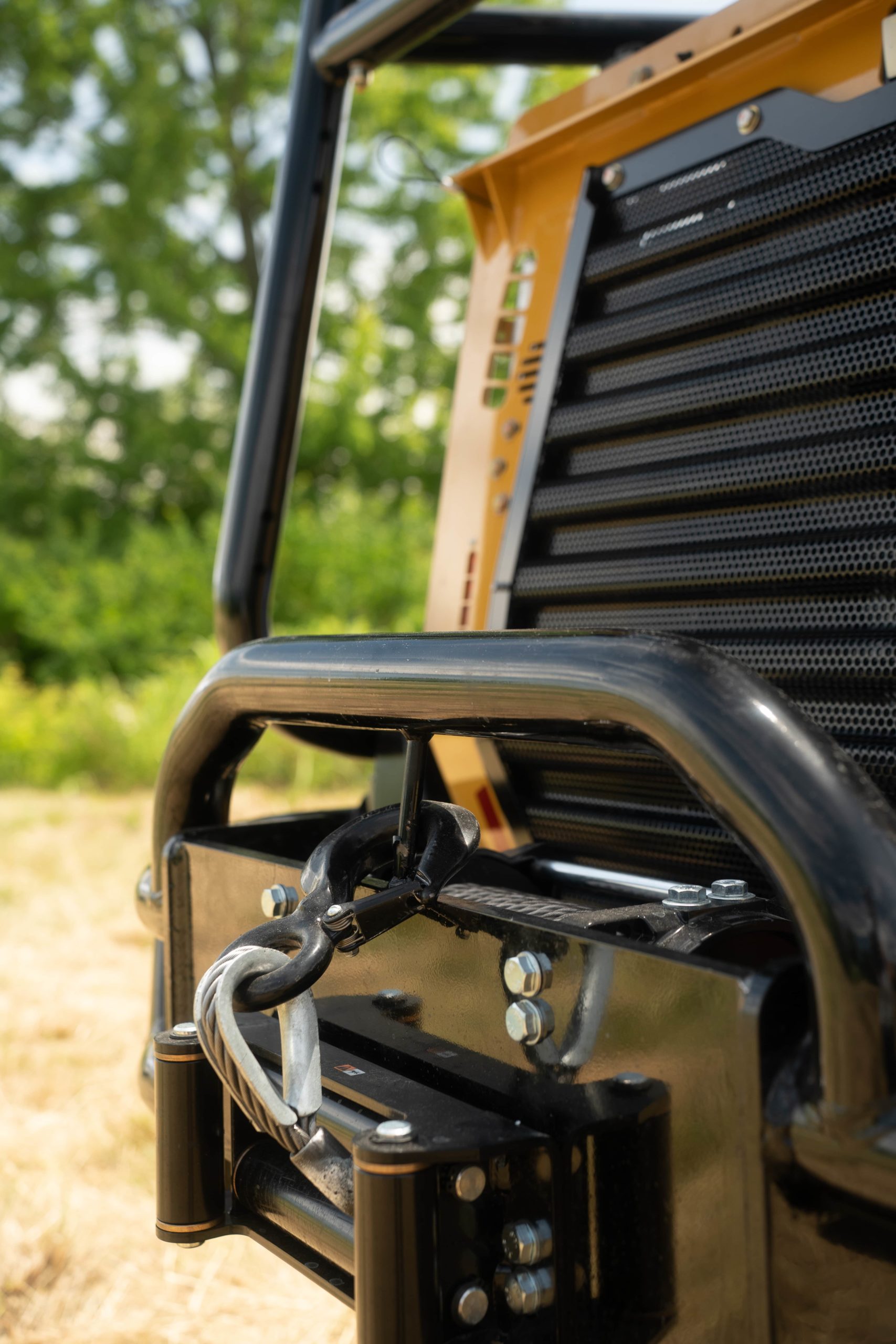

- Counterweight integrates rear bumper with rear track guarding
Product Specs
DIMENSIONS
ENGINE
HYDRAULIC SYSTEM
TRACKS
ATTACHMENTS
Literature
135VRT - Product Literature
PDF Download
135VRT
Frequently Asked Questions
Fecon builds it as a purpose made mulching tractor rather than a construction CTL. It runs a 132 HP 3.8 litre Cummins Tier 4 Final engine, a 10 percent increase over the Fecon 125VRT, and sends 50 GPM of auxiliary flow to the attachment, which puts roughly 119 HP into the Bull Hog mulcher.

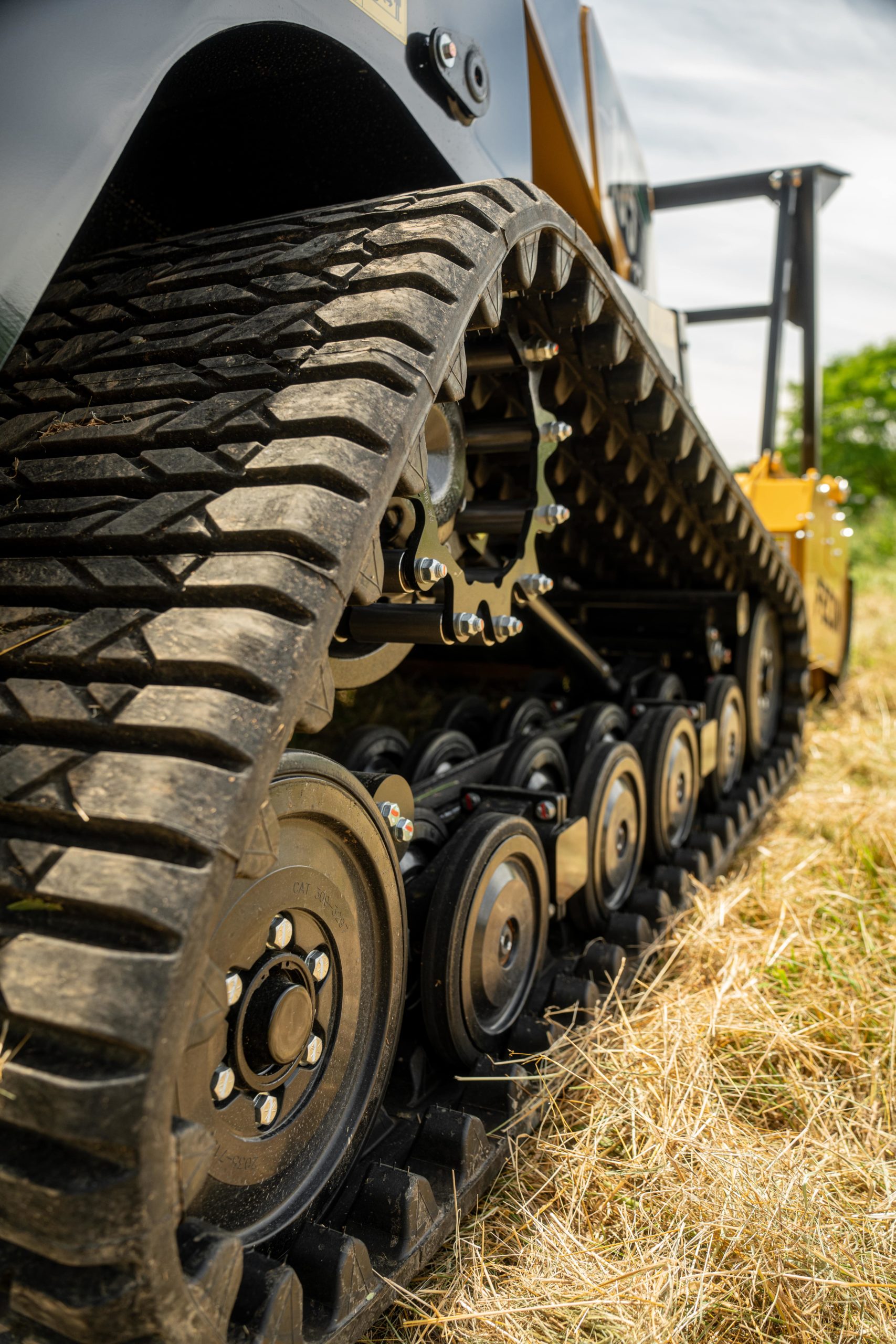

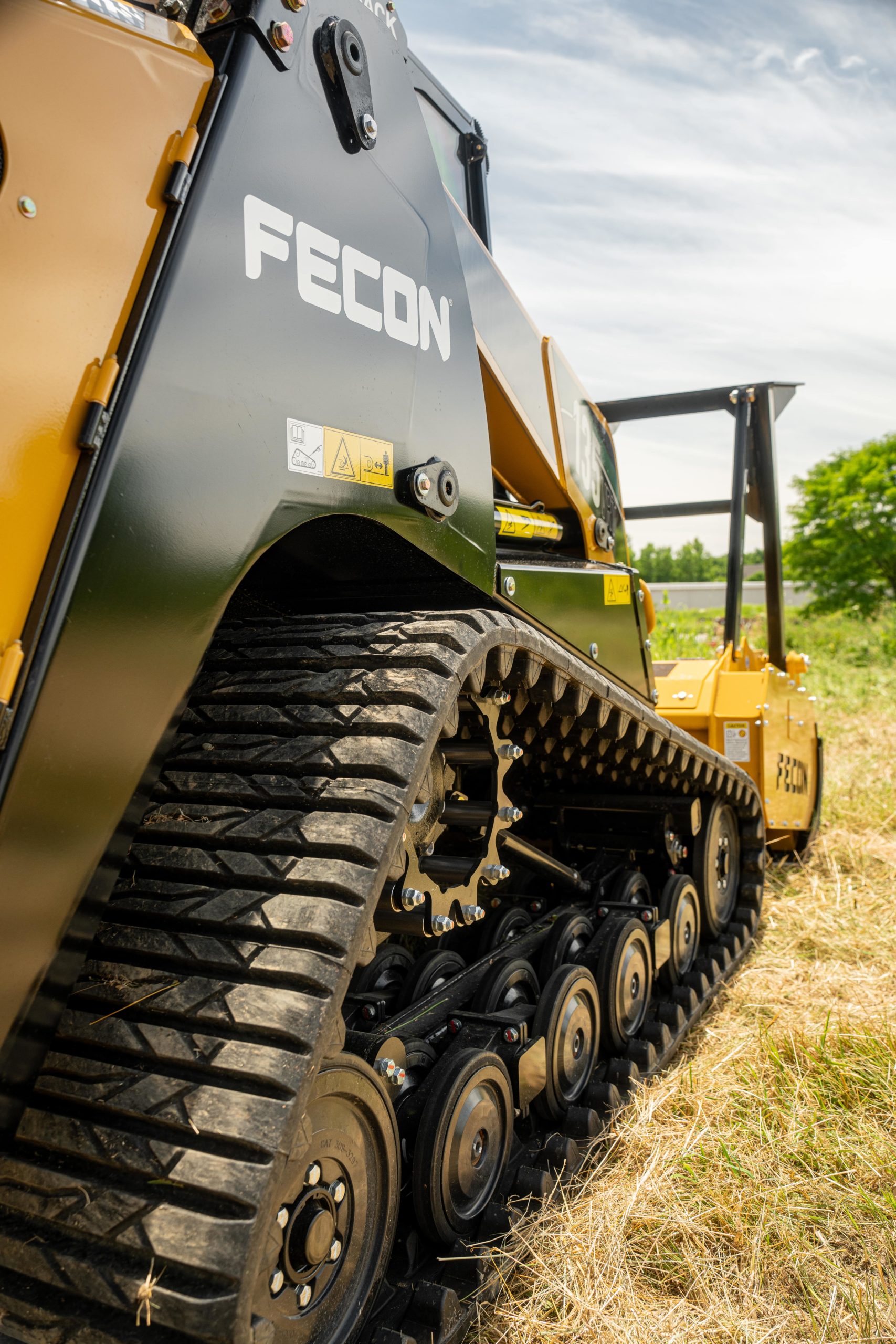

An ASV Posi-Track undercarriage with independent torsion axle suspension, 20 inch tracks and 48 high density polyurethane roller wheels. The torsion suspended drive is what makes it swift and durable over rough ground, and travel speed is 10 mph.
The VM6020 Bull Hog mulching head, the BK7618V, the VDM74 and the SHX33SVM stump grinder. Mounting is skid steer quick attach with radial lift loader arms, so moving between mulching and stump work is quick.
52 gallons, which is close to double the run time between fill ups. The tank has full coverage guarding with improved sealing to prevent debris ingestion, and DEF capacity is 5 gallons.

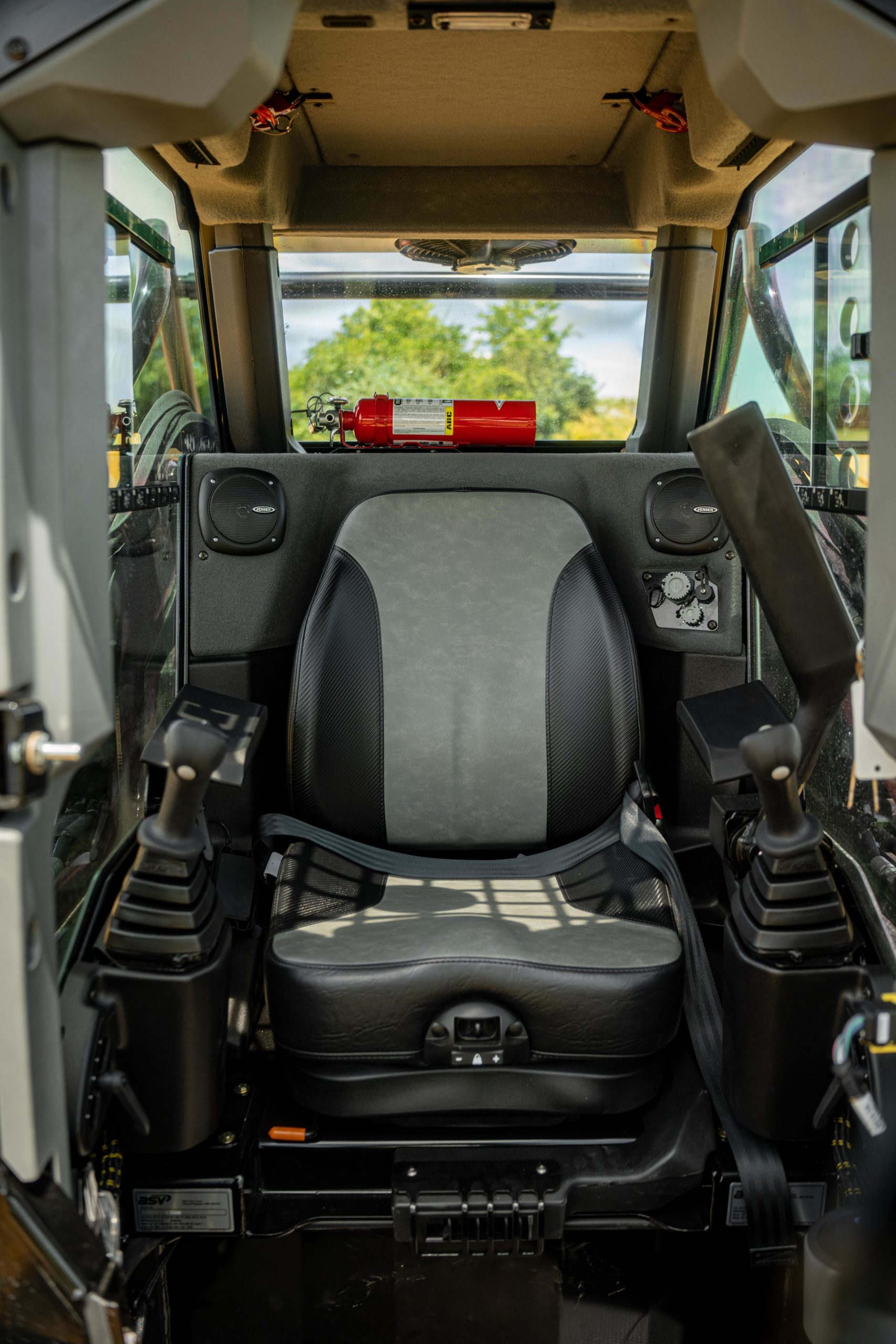

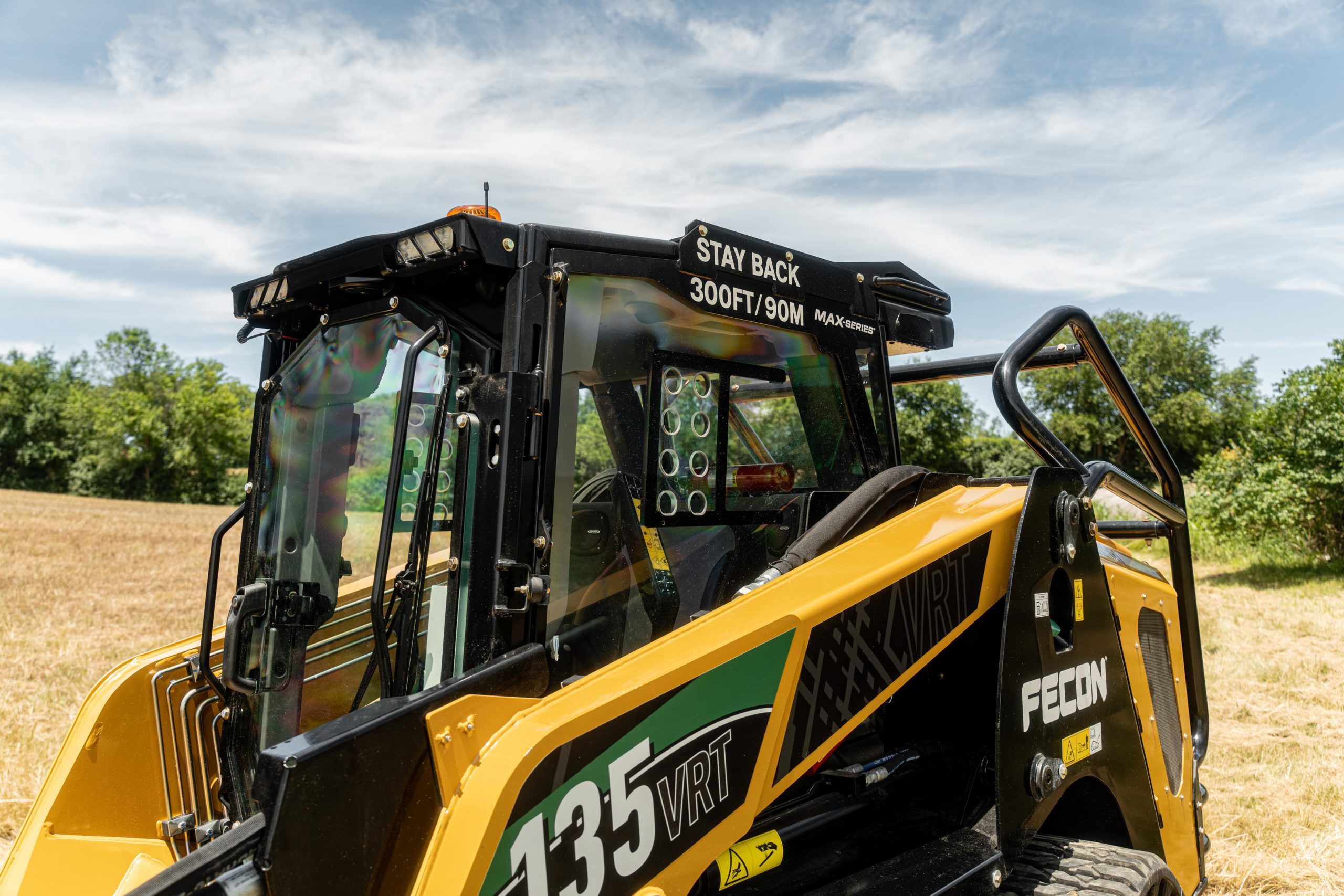

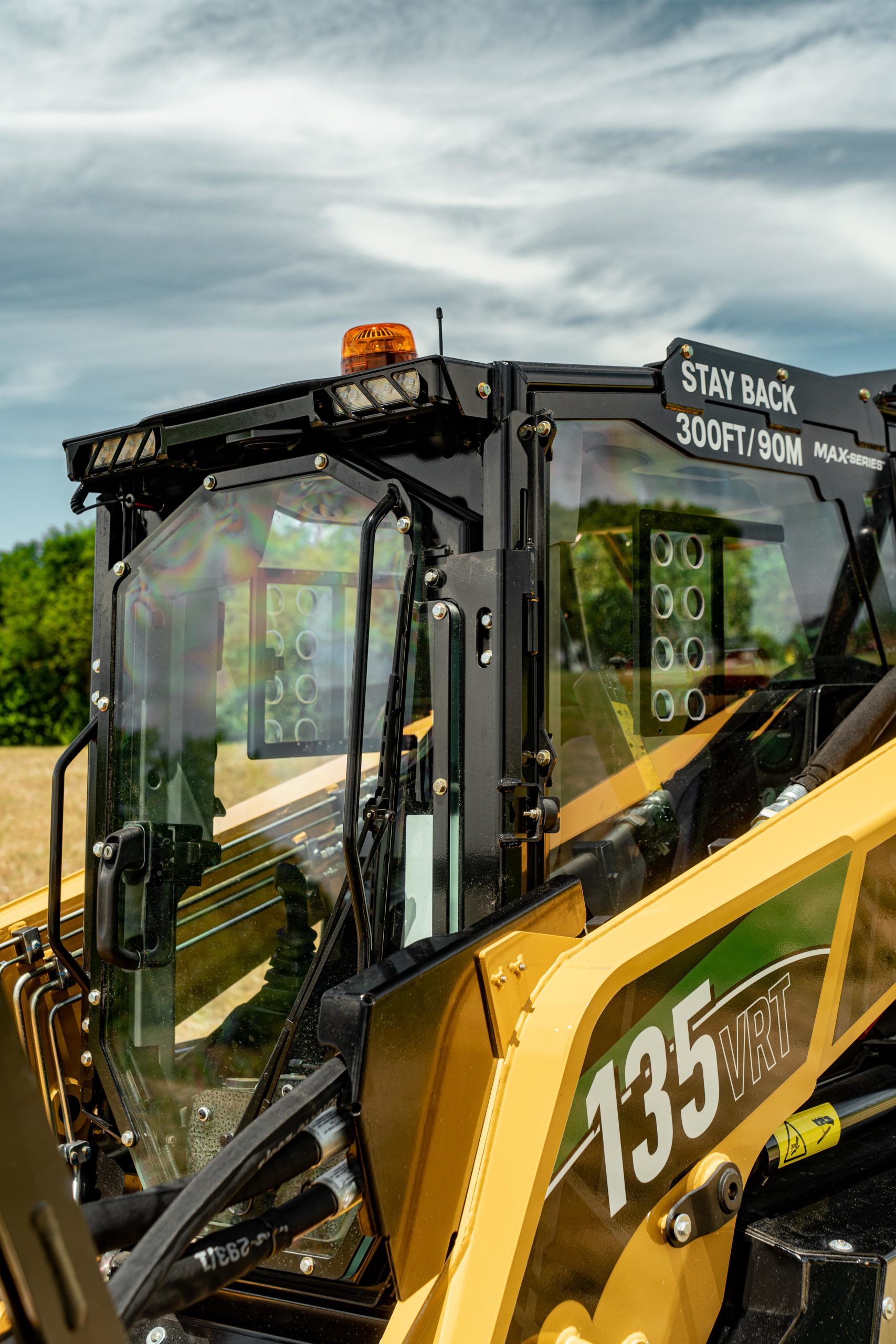

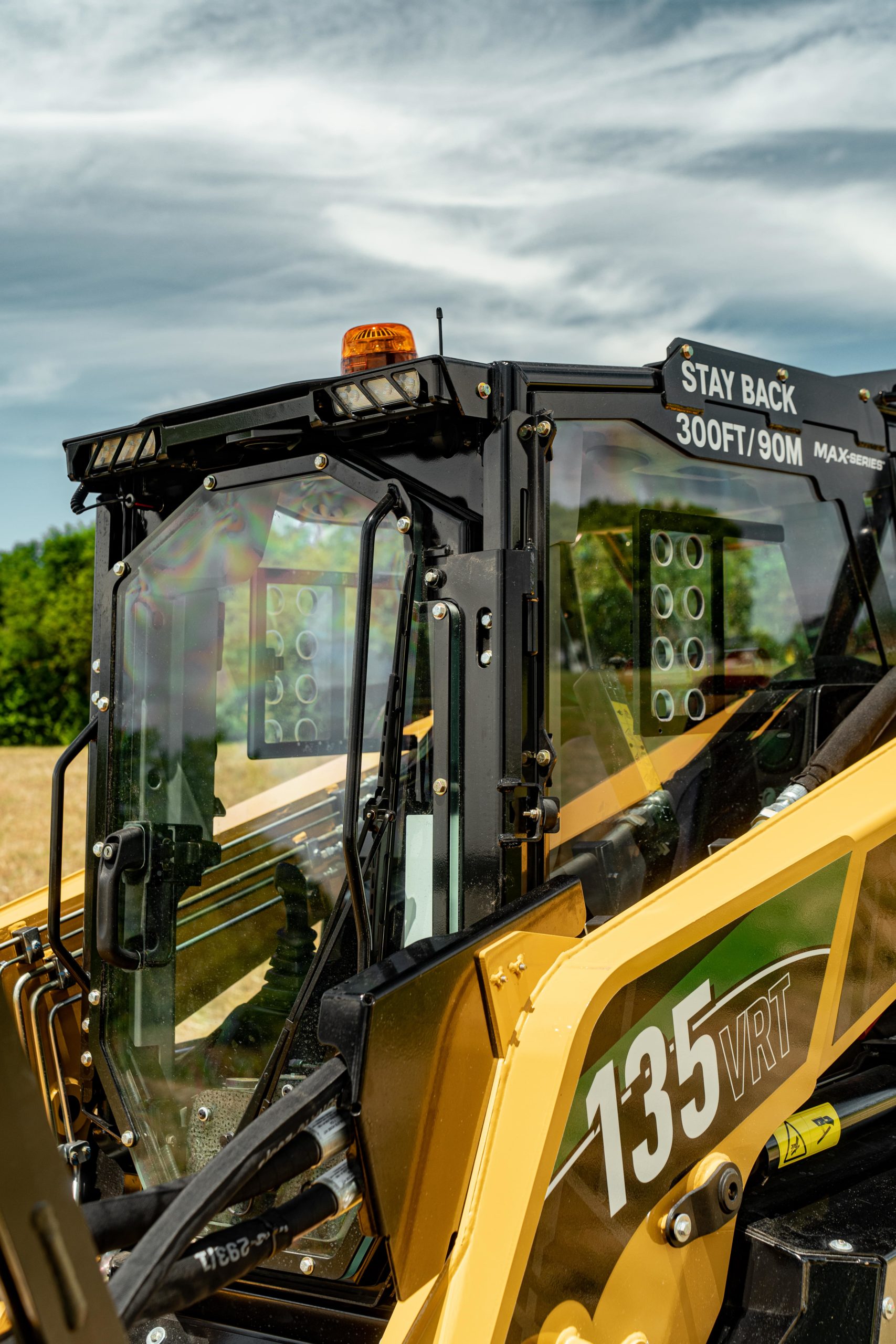

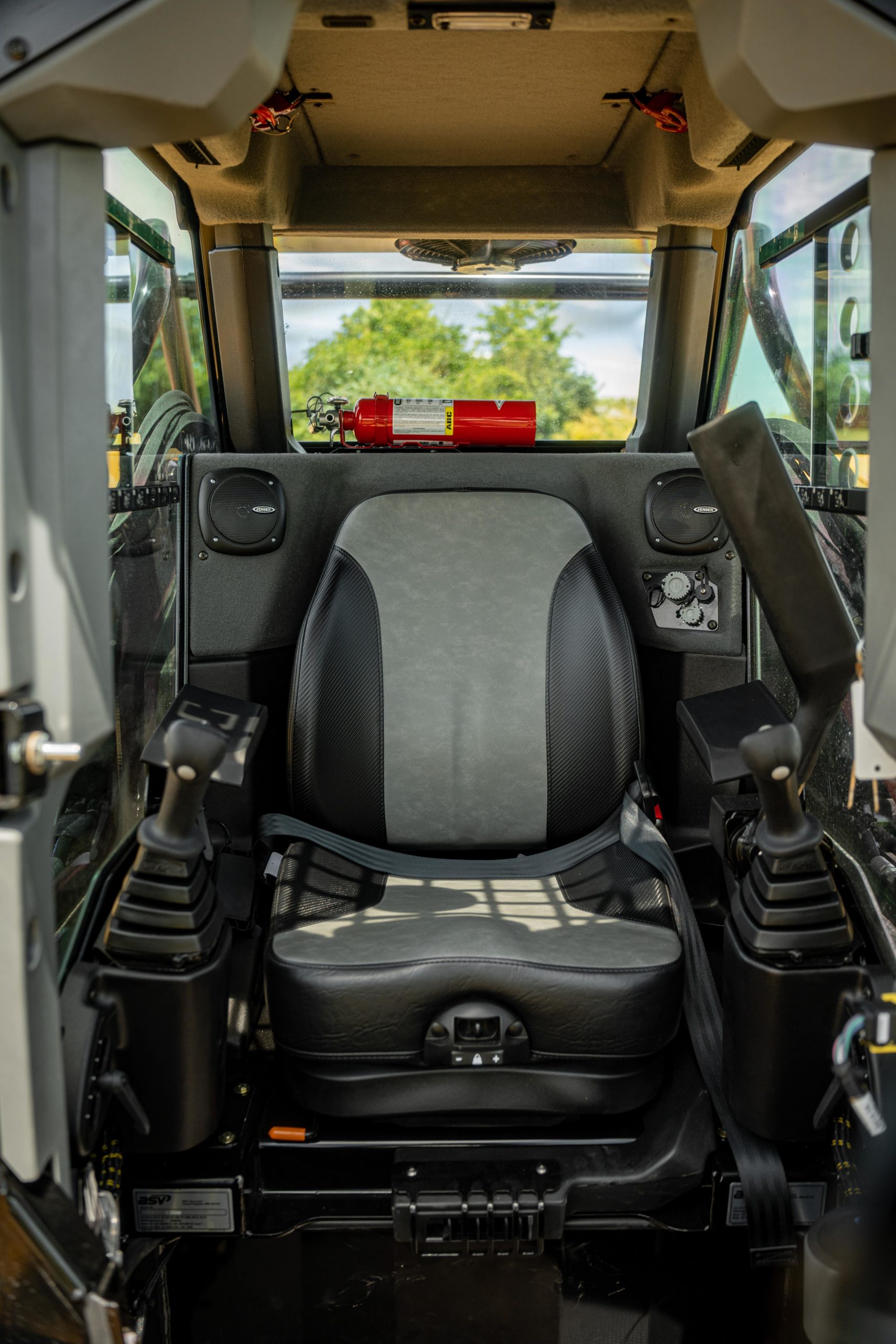

It uses the Max Series full forestry spec cab with a 3/4 inch poly front door and 1/2 inch poly side windows. Inside is a pressurised, spacious operator station with a suspension seat and an 8 inch colour display. All clear windows and a loader arm with no cross bars give better visibility to the attachment.
12,990 lbs on its own and 15,616 lbs with the Bull Hog fitted, giving 4.6 psi ground pressure. Overall height is 90 inches, width is 78 inches, and length is 136 inches or 175 inches with the head attached.
Yes. It uses all steel hoods with a material shedding design, standard cage guard and limb risers for in woods protection, hinged belly pans and tilting cooler and condenser guards for easy cleaning, sealed fuse panels, and a counterweight that integrates the rear bumper with rear track guarding.
